Laser Line 3D Camera (SSL-B Series)

Complementary to SSL‑A series, the SSL‑B laser‑line 3D profiler provides fine point‑cloud data with 67 kHz scanning, 0.1 μm repeatability, high‑precision blue laser and IP67 protection for micron‑level dynamic inspection in 3C, semiconductor and new‑energy industries.

Download Catalog Request Quote

Key Specifications

Superior Measurement PerformanceAdopt 405 nm blue‑laser source, featuring outstanding linearity and low temperature drift. Provides stable and reliable profiling performance on reflective, shiny and challenging workpiece surfaces.

Rugged Industrial‑grade HardwareIP67‑rated aluminum‑alloy housing, wide temperature‑humidity tolerance, vibration & shock resistance compliant with IEC standards, stable operation under harsh factory‑floor conditions.

High‑speed & High‑density ProfilingDeliver up to 67000 Hz scan rate with 3200 profile points per frame, generating fine‑grained point‑cloud data to satisfy high‑throughput inline inspection demands.

Flexible Deployment for Multiple IndustriesCompact mechanical form‑factor with diversified size‑weight variants. Flexible model selection adapts to different working distances and precision requirements, widely applied in 3C, semiconductor and new‑energy industries.

Full‑portfolio Blue‑Laser 3D Profiler SeriesMultiple models cover broad reference‑distance and measurement‑range requirements, achieving Z‑axis repeatability down to 0.1 μm, supporting micron‑level metrology for diverse application scenarios.

Overview

Product Overview

Laser Line 3D Camera (SSL-B Series)

The SSL-B series integrated 3D laser profiler is a specialized optimized variant of S Cube Tech’s SSL lineup and serves as a scenario-specific complementary model to the SSL-A series.

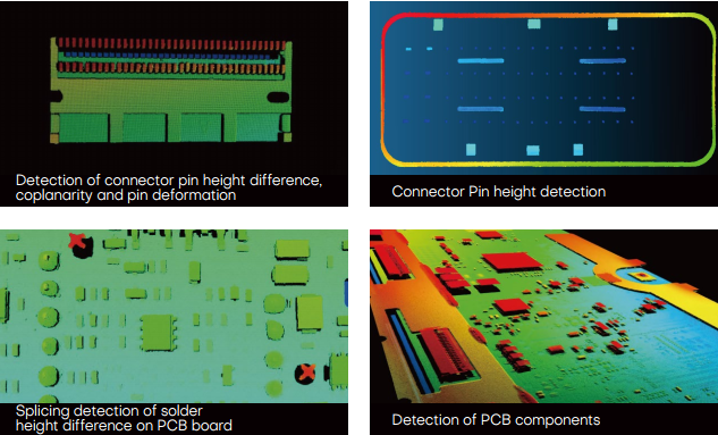

Distinct from the SSL-A series, the SSL-B series generates fine point cloud data, enabling faster scanning speed and higher efficiency while maintaining reliable overall performance.

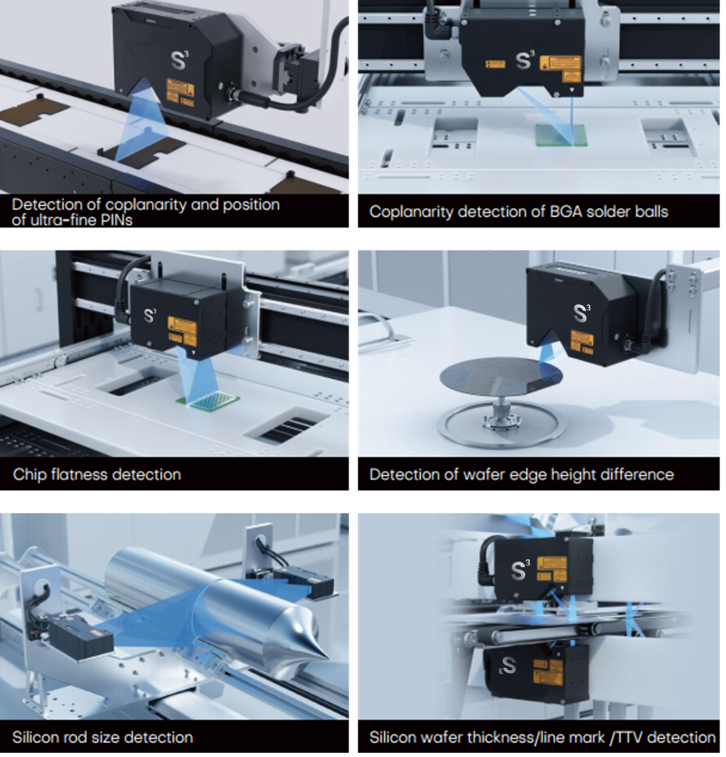

The SSL-B series offers 0.1 μm repeatability and 67 kHz high‑speed scanning, purpose‑built for micron‑precision inspection in 3C, semiconductor, and new energy industries.

Product Features

High Integration

Meet the integration requirements of compact industrial equipment

3200 Pixels

Ultra high resolution

67kHz

Sampling frequency, ultra-high speed detection

30 million bends

High flexible cable

IP67 Protection

Used in humid/dusty environment

UFP processor
